400°C Zirconium Oxide Deep Groove Ball Bearing: 6314-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6314-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$1,229.43
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

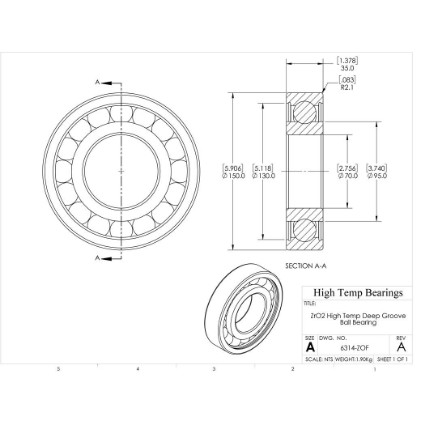

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)70
D (mm)150
B (mm)35
d1 (mm)95
D2 (mm)130
C (lb)7014
C0 (lb)4600
Nmax (RPM)2226
Weight(lbs)4.18
Code270084
PackageQTY1
UOMEA
C (kN)31.2
C0 (kN)20.46
Ra (mm)2
Da (mm)138
damin (mm)82
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
