Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6314-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6314-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$1,229.43
This product has a minimum quantity of 3

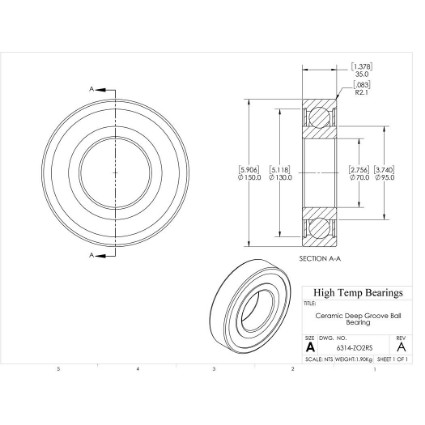

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)70
D (mm)150
B (mm)35
d1 (mm)95
D2 (mm)130
C (lb)7014
C0 (lb)4600
Nmax (RPM)3180
Weight(lbs)4.18
Code101995
PackageQTY1
UOMEA
C (kN)31.2
C0 (kN)20.46
Ra (mm)2
Da (mm)138
damin (mm)82
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
