800°C Silicon Nitride Deep Groove Ball Bearing: 6314-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6314-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$2,090.02
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

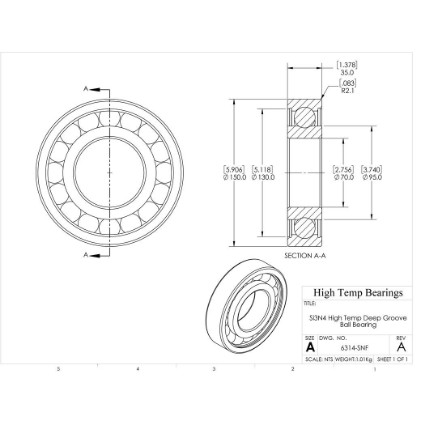

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)70
D (mm)150
B (mm)35
d1 (mm)95
D2 (mm)130
C (lb)5845
C0 (lb)3833
Nmax (RPM)2597
Weight(lbs)2.23
Code270083
PackageQTY1
UOMEA
C (kN)26
C0 (kN)17.05
Ra (mm)2
Da (mm)138
damin (mm)82
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
