Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6314-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6314-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$2,091.82
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

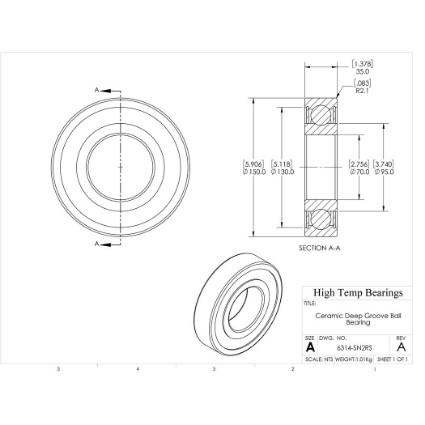

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)70
D (mm)150
B (mm)35
d1 (mm)95
D2 (mm)130
C (lb)5845
C0 (lb)3833
Nmax (RPM)3710
Weight(lbs)2.23
Code101993
PackageQTY1
UOMEA
C (kN)26
C0 (kN)17.05
Ra (mm)2
Da (mm)138
damin (mm)82
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
