70mm 6314 High Temperature 1200 °C Ceramic Bearing|High Temp Bearings

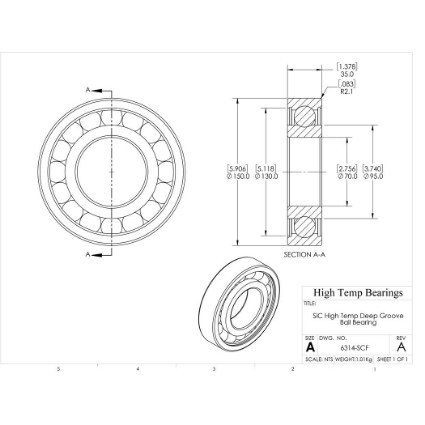

Picture of 1200°C Silicon Carbide Deep Groove Ball Bearing

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing

$2,497.48

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		101991
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Construction		2192F Open
Duty		High Temperature
Seals		None
Series		SiC
Shaft Size		70mm
Material		SiC

Dimensions

Attribute name		Attribute value
D (mm)		150
B (mm)		35
r (mm)		2.1
D2 (mm)		130
d1 (mm)		95
Bore (mm)		70

Abutment Dimensions

Attribute name		Attribute value
Ra (mm)		2
Da (mm)		138
damin (mm)		82

Calculation Data

Attribute name		Attribute value
Nmax (RPM)	Limiting speed	2226
kr	Minimum radial load factor	30
ka	Minimum axial load factor	0.5
fo	Calculation factor	13
C (lb)	Dynamic load capacity	4676
C0 (lb)	Static load capacity	3066

Mass

Attribute name		Attribute value
Weight(lbs)		2.23

Tolerance Class

Attribute name		Attribute value
Clearance		0.0005"

Safe Loads

Attribute name		Attribute value
Tmax (F)		2192
Tmin (F)		-112
