Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6314-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6314-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$2,784.81
This product has a minimum quantity of 5

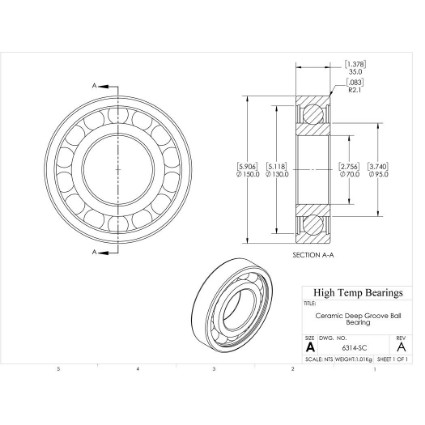

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)70
D (mm)150
B (mm)35
d1 (mm)95
D2 (mm)130
C (lb)4676
C0 (lb)3066
Nmax (RPM)3180
Weight(lbs)2.23
Code101989
PackageQTY1
UOMEA
C (kN)20.8
C0 (kN)13.64
Ra (mm)2
Da (mm)138
damin (mm)82
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
