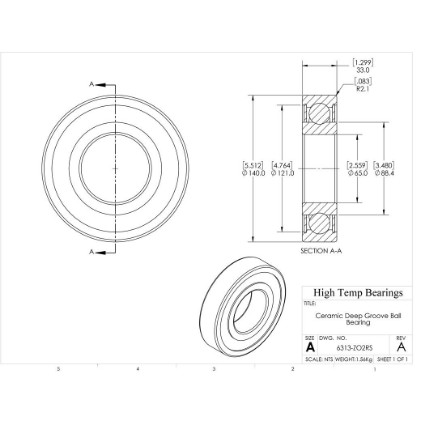

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6313-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6313-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$947.10
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)65
D (mm)140
B (mm)33
d1 (mm)88.4
D2 (mm)121
C (lb)6252
C0 (lb)4040
Nmax (RPM)3600
Weight(lbs)3.44
Code101982
PackageQTY1
UOMEA
C (kN)27.81
C0 (kN)17.97
Ra (mm)2
Da (mm)128
damin (mm)77
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
