Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6313-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6313-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$1,611.85
This product has a minimum quantity of 3

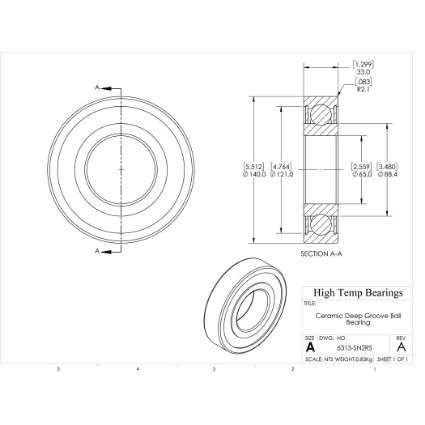

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)65
D (mm)140
B (mm)33
d1 (mm)88.4
D2 (mm)121
C (lb)5210
C0 (lb)3367
Nmax (RPM)4200
Weight(lbs)1.83
Code101980
PackageQTY1
UOMEA
C (kN)23.175
C0 (kN)14.975
Ra (mm)2
Da (mm)128
damin (mm)77
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
