Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6313-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6313-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$1,611.85
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

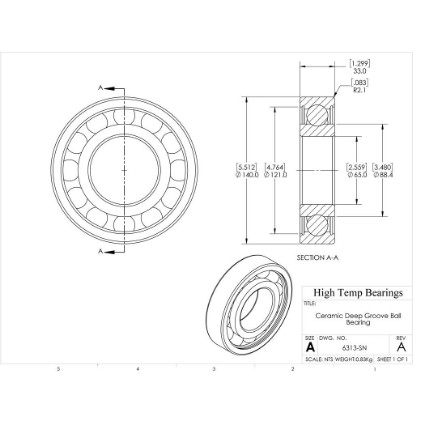

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)65
D (mm)140
B (mm)33
d1 (mm)88.4
D2 (mm)121
C (lb)5210
C0 (lb)3367
Nmax (RPM)4200
Weight(lbs)1.83
Code101979
PackageQTY1
UOMEA
C (kN)23.175
C0 (kN)14.975
Ra (mm)2
Da (mm)128
damin (mm)77
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
