1200°C Silicon Carbide Deep Groove Ball Bearing: 6313-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6313-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$1,649.33
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

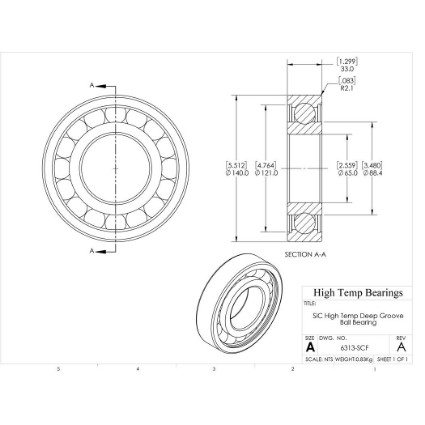

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)65
D (mm)140
B (mm)33
d1 (mm)88.4
D2 (mm)121
C (lb)4168
C0 (lb)2693
Nmax (RPM)2520
Weight(lbs)1.83
Code101978
PackageQTY1
UOMEA
C (kN)18.54
C0 (kN)11.98
Ra (mm)2
Da (mm)128
damin (mm)77
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
