Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6313-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6313-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$1,999.42
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

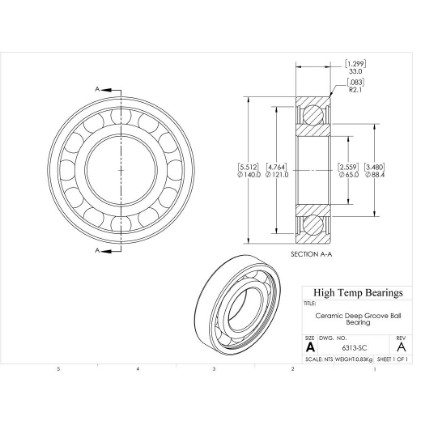

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)65
D (mm)140
B (mm)33
d1 (mm)88.4
D2 (mm)121
C (lb)4168
C0 (lb)2693
Nmax (RPM)3600
Weight(lbs)1.83
Code101976
PackageQTY1
UOMEA
C (kN)18.54
C0 (kN)11.98
Ra (mm)2
Da (mm)128
damin (mm)77
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
