400°C Zirconium Oxide Deep Groove Ball Bearing: 6312-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6312-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$603.16
This product has a minimum quantity of 3

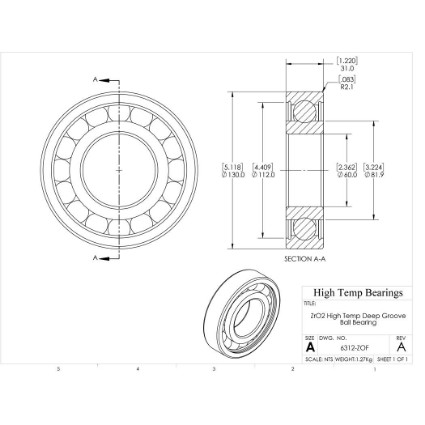

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)60
D (mm)130
B (mm)31
d1 (mm)81.9
D2 (mm)112
C (lb)5524
C0 (lb)3521
Nmax (RPM)2646
Weight(lbs)2.81
Code270081
PackageQTY1
UOMEA
SeriesZrO2
C (kN)24.57
C0 (kN)15.66
Ra (mm)2
Da (mm)118
damin (mm)72
kr30
ka0.5
fo13
r (mm)2.1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
