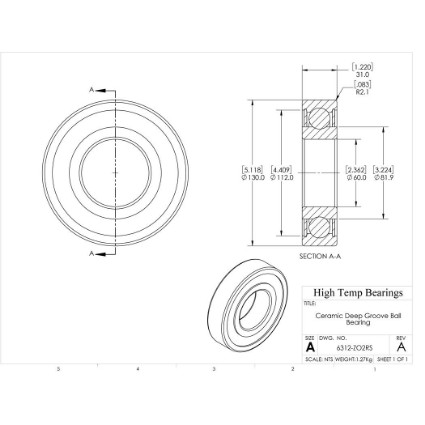

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6312-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6312-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$603.17
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)60
D (mm)130
B (mm)31
d1 (mm)81.9
D2 (mm)112
C (lb)5524
C0 (lb)3521
Nmax (RPM)3780
Weight(lbs)2.81
Code101970
PackageQTY1
UOMEA
C (kN)24.57
C0 (kN)15.66
Ra (mm)2
Da (mm)118
damin (mm)72
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
