800°C Silicon Nitride Deep Groove Ball Bearing: 6312-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6312-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$1,025.38
This product has a minimum quantity of 3

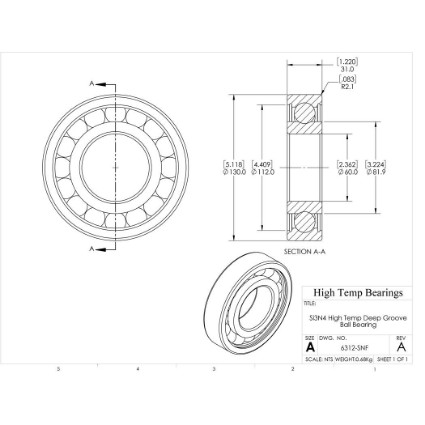

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)60
D (mm)130
B (mm)31
d1 (mm)81.9
D2 (mm)112
C (lb)4603
C0 (lb)2934
Nmax (RPM)3087
Weight(lbs)1.5
Code270080
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)20.475
C0 (kN)13.05
Ra (mm)2
Da (mm)118
damin (mm)72
kr30
ka0.5
fo13
r (mm)2.1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
