1200°C Silicon Carbide Deep Groove Ball Bearing: 6312-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6312-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$1,085.70
This product has a minimum quantity of 5

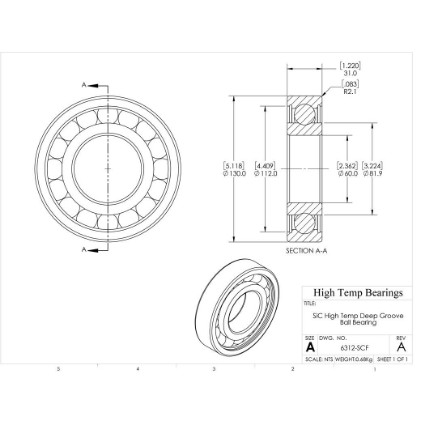

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)60
D (mm)130
B (mm)31
d1 (mm)81.9
D2 (mm)112
C (lb)3682
C0 (lb)2347
Nmax (RPM)2646
Weight(lbs)1.5
Code270079
PackageQTY1
UOMEA
C (kN)16.38
C0 (kN)10.44
Ra (mm)2
Da (mm)118
damin (mm)72
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
