Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6312-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6312-SC2RS

Deep Groove, Single Row, Ceramic, Sealed SiC Ball Bearing
$1,686.29
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

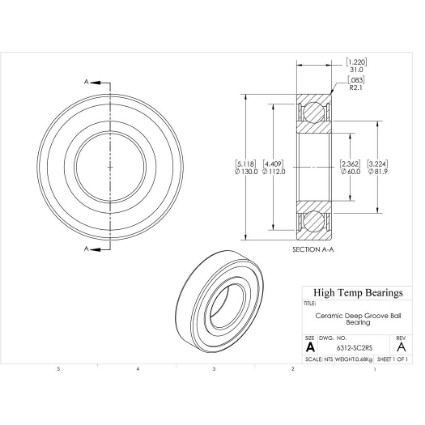

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)60
D (mm)130
B (mm)31
d1 (mm)81.9
D2 (mm)112
C (lb)3682
C0 (lb)2347
Nmax (RPM)3780
Weight(lbs)1.5
Code101966
PackageQTY1
UOMEA
C (kN)16.38
C0 (kN)10.44
Ra (mm)2
Da (mm)118
damin (mm)72
kr30
ka0.5
fo13
r (mm)2.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
