400°C Zirconium Oxide Deep Groove Ball Bearing: 6311-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6311-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$544.13
This product has a minimum quantity of 3

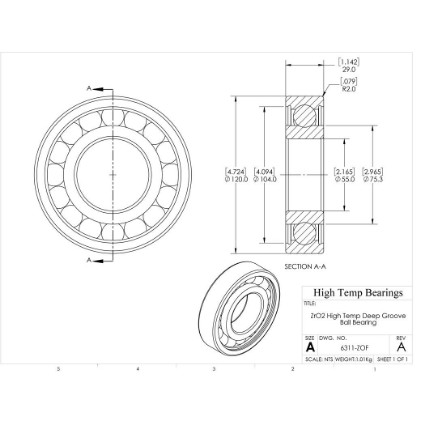

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)55
D (mm)120
B (mm)29
d1 (mm)75.3
D2 (mm)104
C (lb)4829
C0 (lb)3035
Nmax (RPM)2814
Weight(lbs)2.23
Code101959
PackageQTY1
UOMEA
SeriesZrO2
C (kN)21.48
C0 (kN)13.5
Ra (mm)2
Da (mm)109
damin (mm)66
kr30
ka0.5
fo13
r (mm)2
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
