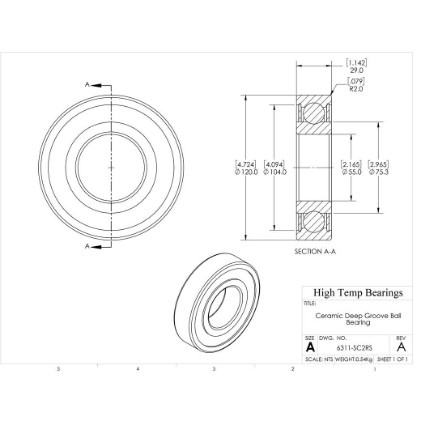

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6311-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6311-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$1,460.43
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)55
D (mm)120
B (mm)29
d1 (mm)75.3
D2 (mm)104
C (lb)3219
C0 (lb)2023
Nmax (RPM)4020
Weight(lbs)1.19
Code101952
PackageQTY1
UOMEA
C (kN)14.32
C0 (kN)9
Ra (mm)2
Da (mm)109
damin (mm)66
kr30
ka0.5
fo13
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
