55mm 6311 Deep Groove Open Ball Bearing|High Temp Bearings

Picture of Deep Groove, Single Row, Open

Deep Groove, Single Row, Open Ball Bearing

$65.92

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		200476
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		6300
Construction		248F Open
Duty		Standard
Seals		None
Shaft Size		55mm
Material		52100

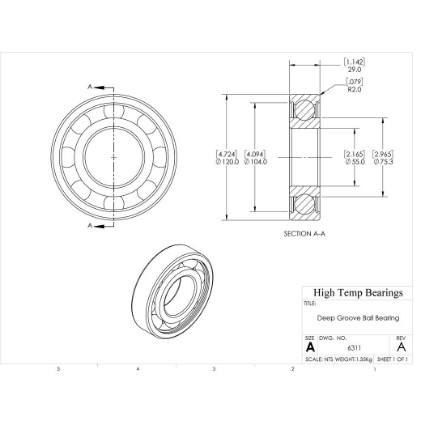

Dimensions

Attribute name		Attribute value
Bore (mm)		55
D (mm)		120
B (mm)		29
r (mm)		2
D2 (mm)		104
d1 (mm)		75.3

Abutment Dimensions

Attribute name		Attribute value
Ra (mm)		2
Da (mm)		109
damin (mm)		66

Calculation Data

Attribute name		Attribute value
Nr (RPM)	Reference speed	12000
Nmax (RPM)	Limiting speed	8000
kr	Minimum radial load factor	30
ka	Minimum axial load factor	0.5
fo	Calculation factor	13
C (lb)	Dynamic load capacity	16658
C0 (lb)	Static load capacity	10116
Pu (lb)	Fatigue load limit	427

Mass

Attribute name		Attribute value
Weight(lbs)		2.98

Tolerance Class

Attribute name		Attribute value
Clearance		C3

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
