400°C Zirconium Oxide Deep Groove Ball Bearing: 6310-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6310-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$485.10
This product has a minimum quantity of 3

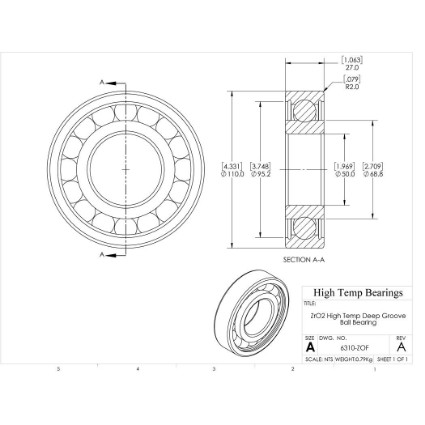

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)50
D (mm)110
B (mm)27
d1 (mm)68.8
D2 (mm)95.2
C (lb)4181
C0 (lb)2583
Nmax (RPM)3150
Weight(lbs)1.74
Code270078
PackageQTY1
UOMEA
SeriesZrO2
C (kN)18.6
C0 (kN)11.49
Ra (mm)2
Da (mm)101
damin (mm)59
kr30
ka0.5
fo13
r (mm)2
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
