800°C Silicon Nitride Deep Groove Ball Bearing: 6310-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6310-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$824.66
This product has a minimum quantity of 3

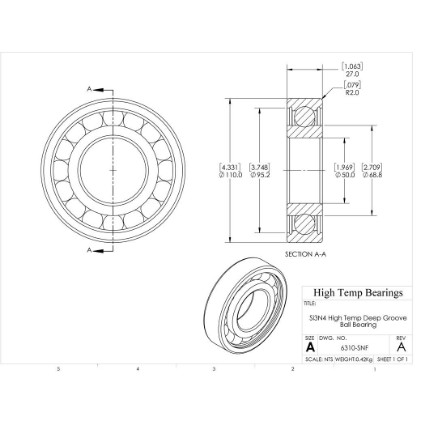

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)50
D (mm)110
B (mm)27
d1 (mm)68.8
D2 (mm)95.2
C (lb)3485
C0 (lb)2153
Nmax (RPM)3675
Weight(lbs)0.93
Code270077
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)15.5
C0 (kN)9.575
Ra (mm)2
Da (mm)101
damin (mm)59
kr30
ka0.5
fo13
r (mm)2
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
