Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6310-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6310-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$826.46
This product has a minimum quantity of 3

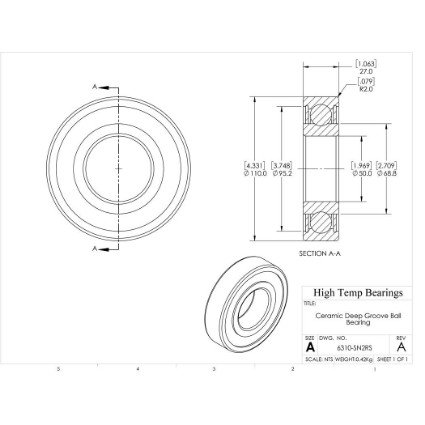

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)50
D (mm)110
B (mm)27
d1 (mm)68.8
D2 (mm)95.2
C (lb)3485
C0 (lb)2153
Nmax (RPM)5250
Weight(lbs)0.93
Code101943
PackageQTY1
UOMEA
C (kN)15.5
C0 (kN)9.575
Ra (mm)2
Da (mm)101
damin (mm)59
kr30
ka0.5
fo13
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
