Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6310-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6310-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$1,211.46
This product has a minimum quantity of 5

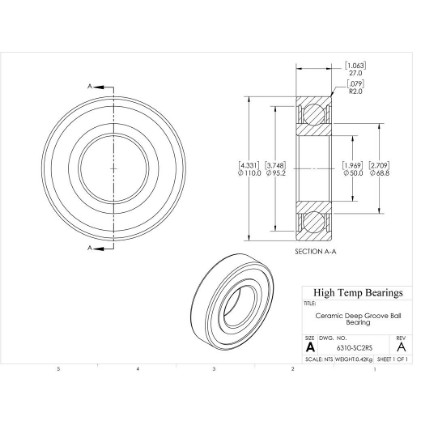

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)50
D (mm)110
B (mm)27
d1 (mm)68.8
D2 (mm)95.2
C (lb)2788
C0 (lb)1722
Nmax (RPM)4500
Weight(lbs)0.93
Code101941
PackageQTY1
UOMEA
C (kN)12.4
C0 (kN)7.66
Ra (mm)2
Da (mm)101
damin (mm)59
kr30
ka0.5
fo13
r (mm)2
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
