Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6309-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6309-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$726.36
This product has a minimum quantity of 3

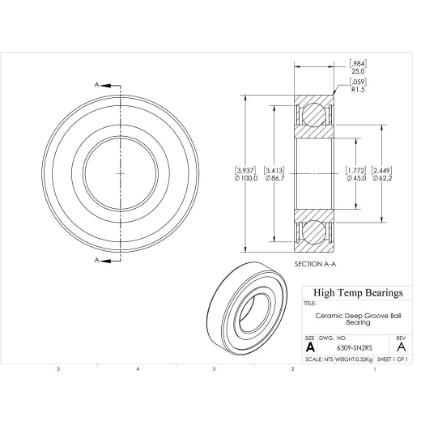

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)45
D (mm)100
B (mm)25
d1 (mm)62.2
D2 (mm)86.7
C (lb)2979
C0 (lb)1798
Nmax (RPM)5600
Weight(lbs)0.71
Code101930
PackageQTY1
UOMEA
C (kN)13.25
C0 (kN)8
Ra (mm)1.5
Da (mm)91
damin (mm)54
kr30
ka0.5
fo13
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
