1200°C Silicon Carbide Deep Groove Ball Bearing: 6309-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6309-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$777.76
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

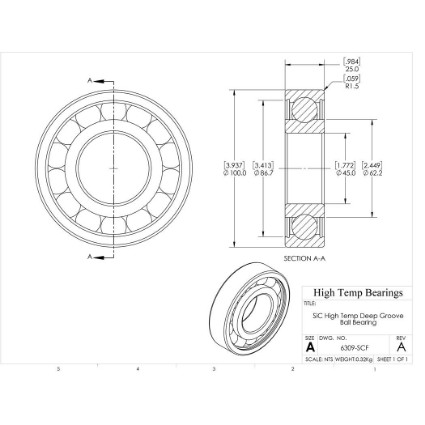

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Shaft Size45mm
D (mm)100
B (mm)25
d1 (mm)62.2
D2 (mm)86.7
C (lb)2383
C0 (lb)1439
Nmax (RPM)3360
Weight(lbs)0.71
Code101928
PackageQTY1
UOMEA
Bore (mm)45
C (kN)10.6
C0 (kN)6.4
Ra (mm)1.5
Da (mm)91
damin (mm)54
kr30
ka0.5
fo13
r (mm)1.5
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
MaterialSiC
Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction. Operation above the continuous duty temperature will reuslt in a loss of clearnce and reduce bearing life.
