Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6308-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6308-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$477.40
This product has a minimum quantity of 3

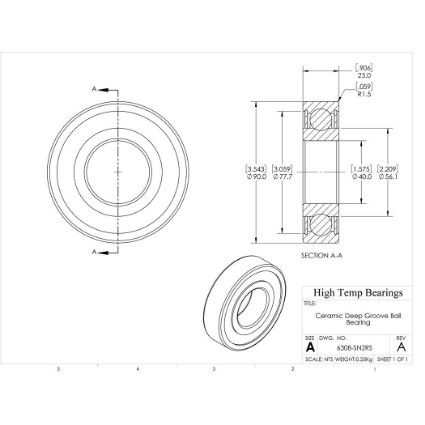

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)40
D (mm)90
B (mm)23
d1 (mm)56.1
D2 (mm)77.7
C (lb)2287
C0 (lb)1349
Nmax (RPM)6300
Weight(lbs)0.55
Code101919
PackageQTY1
UOMEA
C (kN)10.175
C0 (kN)6
Ra (mm)1.5
Da (mm)81
damin (mm)49
kr30
ka0.5
fo13
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
