Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6308-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6308-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$477.40
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

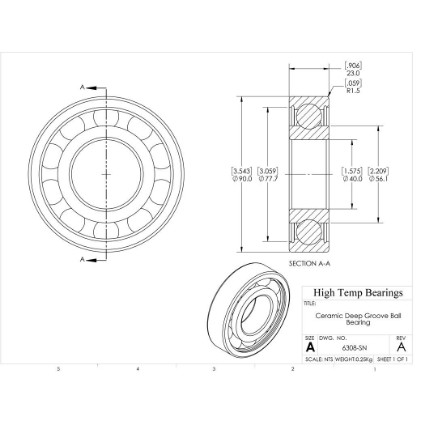

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)40
D (mm)90
B (mm)23
d1 (mm)56.1
D2 (mm)77.7
C (lb)2287
C0 (lb)1349
Nmax (RPM)6300
Weight(lbs)0.55
Code101918
PackageQTY1
UOMEA
C (kN)10.175
C0 (kN)6
Ra (mm)1.5
Da (mm)81
damin (mm)49
kr30
ka0.5
fo13
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
