Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6308-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6308-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$764.86
This product has a minimum quantity of 5

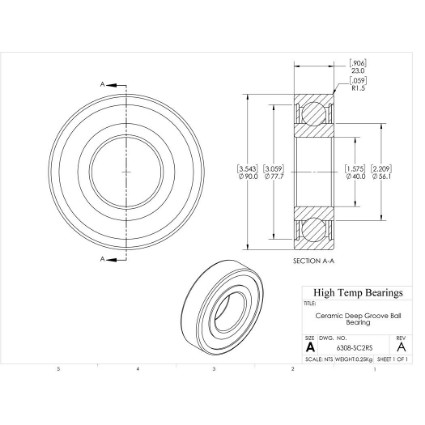

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)40
D (mm)90
B (mm)23
d1 (mm)56.1
D2 (mm)77.7
C (lb)1830
C0 (lb)1079
Nmax (RPM)5400
Weight(lbs)0.55
Code101917
PackageQTY1
UOMEA
C (kN)8.14
C0 (kN)4.8
Ra (mm)1.5
Da (mm)81
damin (mm)49
kr30
ka0.5
fo13
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
