400°C Zirconium Oxide Deep Groove Ball Bearing: 6307-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6307-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$225.87
This product has a minimum quantity of 5

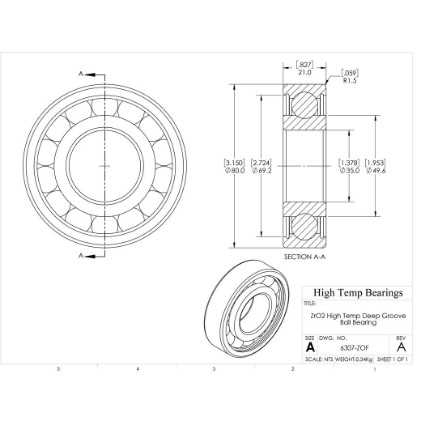

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)35
D (mm)80
B (mm)21
d1 (mm)49.6
D2 (mm)69.2
C (lb)2253
C0 (lb)1302
Nmax (RPM)4200
Weight(lbs)0.76
Code101910
PackageQTY1
UOMEA
C (kN)10.02
C0 (kN)5.79
Ra (mm)1.5
Da (mm)71
damin (mm)44
kr30
ka0.5
fo13
r (mm)1.5
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
