Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6307-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6307-SC2RS

Deep Groove, Single Row, Ceramic, Sealed SiC Ball Bearing
$510.77
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

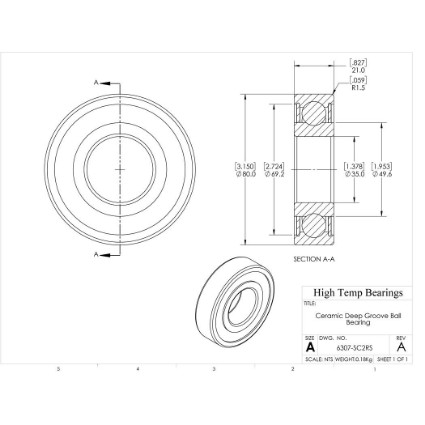

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)35
D (mm)80
B (mm)21
d1 (mm)49.6
D2 (mm)69.2
C (lb)1502
C0 (lb)868
Nmax (RPM)6000
Weight(lbs)0.4
Code101903
PackageQTY1
UOMEA
C (kN)6.68
C0 (kN)3.86
Ra (mm)1.5
Da (mm)71
damin (mm)44
kr30
ka0.5
fo13
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
