Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6306-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6306-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$174.53
This product has a minimum quantity of 5

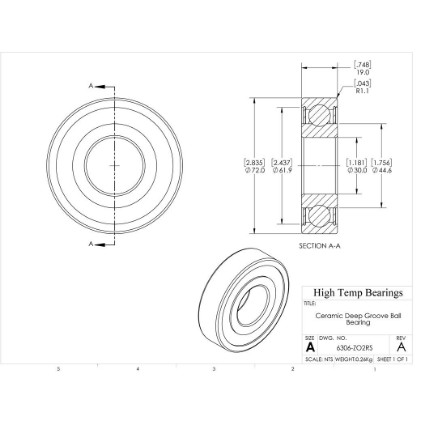

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)30
D (mm)72
B (mm)19
d1 (mm)44.6
D2 (mm)61.9
C (lb)1801
C0 (lb)1012
Nmax (RPM)7200
Weight(lbs)0.57
Code101896
PackageQTY1
UOMEA
C (kN)8.01
C0 (kN)4.5
Ra (mm)1
Da (mm)65
damin (mm)37
kr30
ka0.5
fo13
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
