Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6306-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6306-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$297.73
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

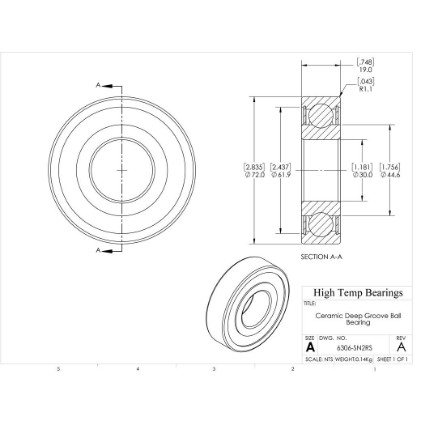

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)30
D (mm)72
B (mm)19
d1 (mm)44.6
D2 (mm)61.9
C (lb)1501
C0 (lb)843
Nmax (RPM)8400
Weight(lbs)0.3
Code101894
PackageQTY1
UOMEA
C (kN)6.675
C0 (kN)3.75
Ra (mm)1
Da (mm)65
damin (mm)37
kr30
ka0.5
fo13
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
