1200°C Silicon Carbide Deep Groove Ball Bearing: 6306-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6306-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$314.16
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

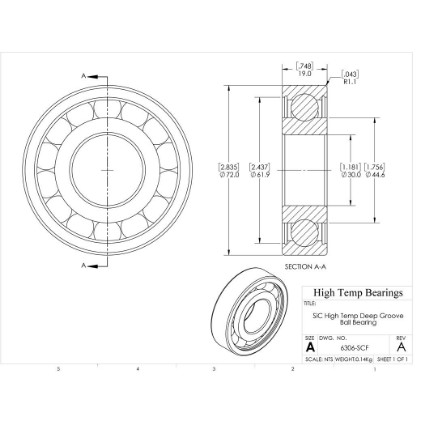

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)30
D (mm)72
B (mm)19
d1 (mm)44.6
D2 (mm)61.9
C (lb)1200
C0 (lb)674
Nmax (RPM)5040
Weight(lbs)0.31
Code270070
PackageQTY1
UOMEA
C (kN)5.34
C0 (kN)3
Ra (mm)1
Da (mm)65
damin (mm)37
kr30
ka0.5
fo13
r (mm)1.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
