400°C Zirconium Oxide Deep Groove Ball Bearing: 6305-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6305-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$146.30
This product has a minimum quantity of 5

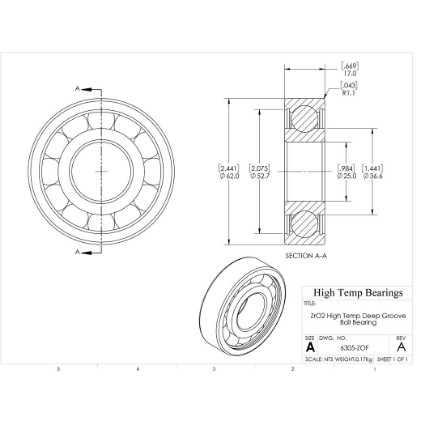

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)25
D (mm)62
B (mm)17
d1 (mm)36.6
D2 (mm)52.7
C (lb)1389
C0 (lb)751
Nmax (RPM)5460
Weight(lbs)0.38
Code101885
PackageQTY1
UOMEA
SeriesZrO2
C (kN)6.18
C0 (kN)3.339
Ra (mm)1
Da (mm)55
damin (mm)32
kr30
ka0.5
fo12
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
