Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6305-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6305-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$146.30
This product has a minimum quantity of 5

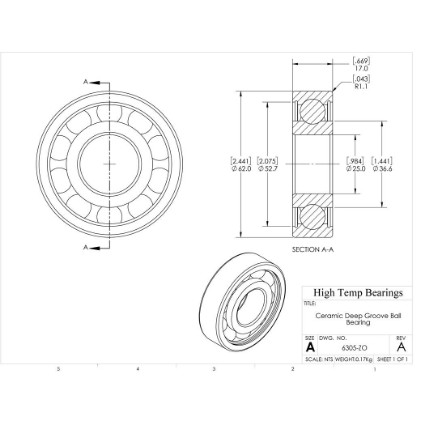

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)25
D (mm)62
B (mm)17
d1 (mm)36.6
D2 (mm)52.7
C (lb)1389
C0 (lb)751
Nmax (RPM)7800
Weight(lbs)0.38
Code101883
PackageQTY1
UOMEA
C (kN)6.18
C0 (kN)3.339
Ra (mm)1
Da (mm)55
damin (mm)32
kr30
ka0.5
fo12
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
