800°C Silicon Nitride Deep Groove Ball Bearing: 6305-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6305-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$224.84
This product has a minimum quantity of 5

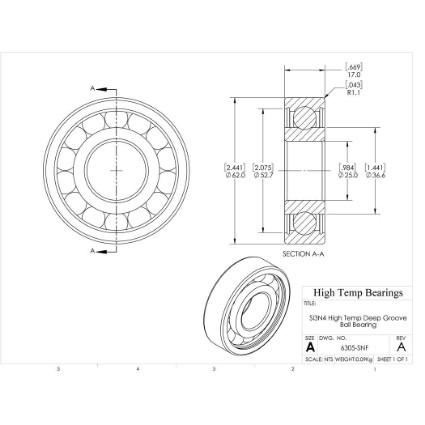

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)25
D (mm)62
B (mm)17
d1 (mm)36.6
D2 (mm)52.7
C (lb)1158
C0 (lb)635
Nmax (RPM)6370
Weight(lbs)0.21
Code101882
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)5.15
C0 (kN)2.825
Ra (mm)1
Da (mm)55
damin (mm)32
kr30
ka0.5
fo12
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
