Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6305-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6305-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$248.97
This product has a minimum quantity of 2
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

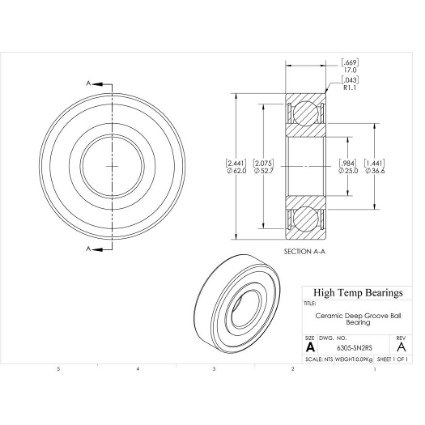

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)25
D (mm)62
B (mm)17
d1 (mm)36.6
D2 (mm)52.7
C (lb)1158
C0 (lb)635
Nmax (RPM)9100
Weight(lbs)0.21
Code101881
PackageQTY1
UOMEA
C (kN)5.15
C0 (kN)2.825
Ra (mm)1
Da (mm)55
damin (mm)32
kr30
ka0.5
fo12
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
