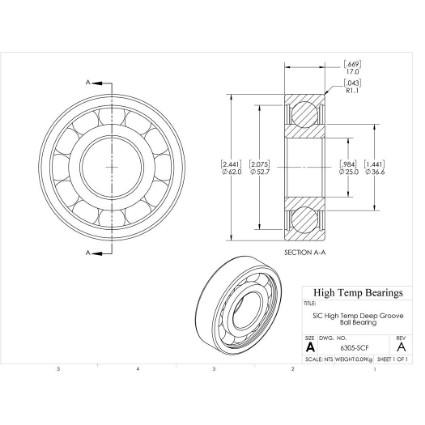

1200°C Silicon Carbide Deep Groove Ball Bearing: 6305-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6305-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$283.70
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)25
D (mm)62
B (mm)17
d1 (mm)36.6
D2 (mm)52.7
C (lb)926
C0 (lb)508
Nmax (RPM)5460
Weight(lbs)0.21
Code101879
PackageQTY1
UOMEA
SeriesSiC
C (kN)4.12
C0 (kN)2.26
Ra (mm)1
Da (mm)55
damin (mm)32
kr30
ka0.5
fo12
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
