1200°C Silicon Carbide Deep Groove Ball Bearing: 6304-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6304-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$161.70
This product has a minimum quantity of 5

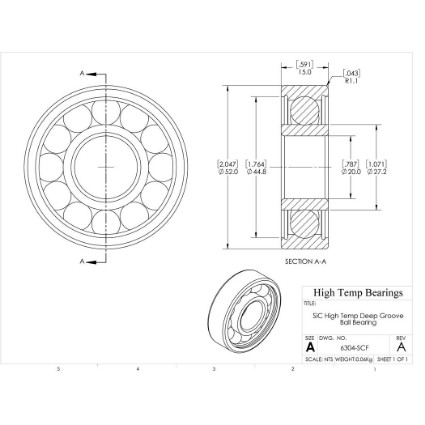

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)20
D (mm)52
B (mm)15
d1 (mm)27.2
D2 (mm)44.8
C (lb)715
C0 (lb)353
Nmax (RPM)7140
Weight(lbs)0.13
Code270067
PackageQTY1
UOMEA
SeriesSiC
C (kN)3.18
C0 (kN)1.57
Ra (mm)1
Da (mm)45
damin (mm)27
kr30
ka0.5
fo12
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
