Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6304-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6304-SC

Deep Groove, Single Row, Ceramic, Open, SiC
$218.17
This product has a minimum quantity of 5

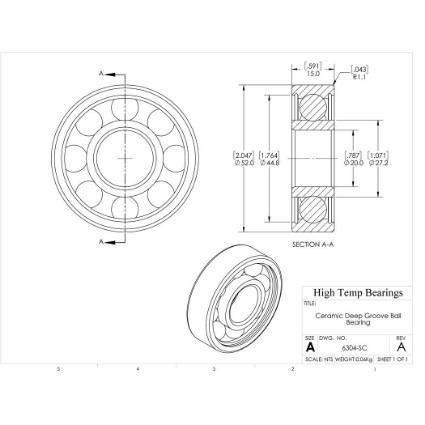

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)20
D (mm)52
B (mm)15
d1 (mm)27.2
D2 (mm)44.8
C (lb)715
C0 (lb)353
Nmax (RPM)10200
Weight(lbs)0.13
Code101866
PackageQTY1
UOMEA
C (kN)3.18
C0 (kN)1.57
Ra (mm)1
Da (mm)45
damin (mm)27
kr30
ka0.5
fo12
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
