Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6303-ZO

Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6303-ZO

Deep Groove, Single Row, Ceramic, Open ZrO2 Ball Bearing
$87.27
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

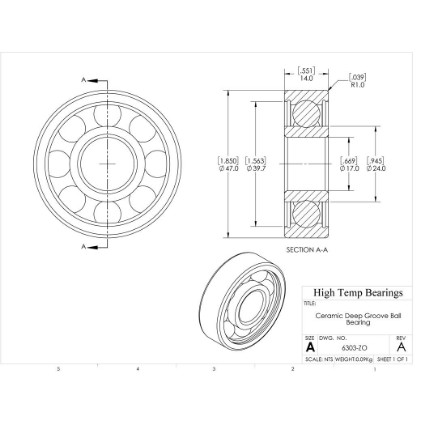

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)17
D (mm)47
B (mm)14
d1 (mm)24
D2 (mm)39.7
C (lb)917
C0 (lb)448
Nmax (RPM)10800
Weight(lbs)0.19
Code101859
PackageQTY1
UOMEA
C (kN)4.08
C0 (kN)1.995
Ra (mm)1
Da (mm)41.4
damin (mm)22.6
kr30
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
