800°C Silicon Nitride Deep Groove Ball Bearing: 6303-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6303-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$133.47
This product has a minimum quantity of 5

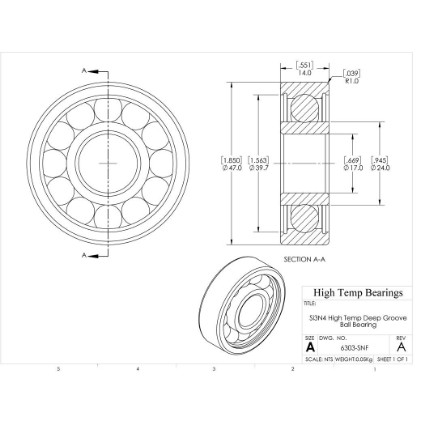

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)17
D (mm)47
B (mm)14
d1 (mm)24
D2 (mm)39.7
C (lb)764
C0 (lb)374
Nmax (RPM)8820
Weight(lbs)0.1
Code270065
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)3.4
C0 (kN)1.663
Ra (mm)1
Da (mm)41.4
damin (mm)22.6
kr30
ka0.5
fo12
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
