Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6303-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6303-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$148.87
This product has a minimum quantity of 2

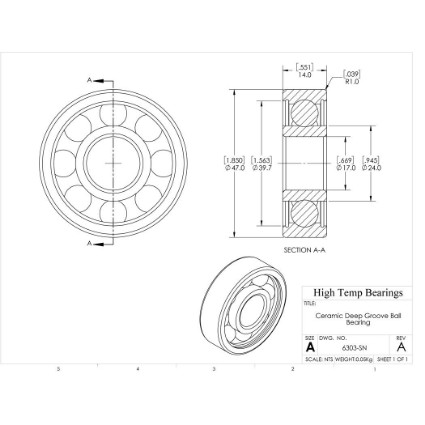

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)17
D (mm)47
B (mm)14
d1 (mm)24
D2 (mm)39.7
C (lb)764
C0 (lb)374
Nmax (RPM)12600
Weight(lbs)0.1
Code101857
PackageQTY1
UOMEA
C (kN)3.4
C0 (kN)1.663
Ra (mm)1
Da (mm)41.4
damin (mm)22.6
kr30
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
