Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6303-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6303-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$177.10
This product has a minimum quantity of 5

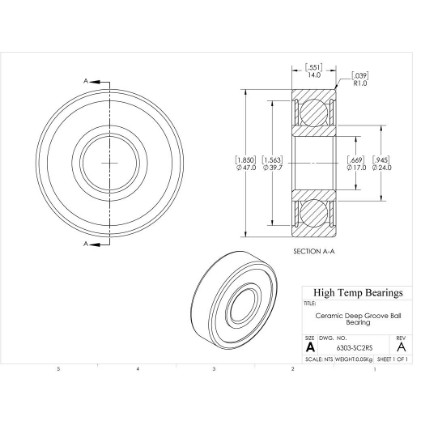

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)17
D (mm)47
B (mm)14
d1 (mm)24
D2 (mm)39.7
C (lb)611
C0 (lb)299
Nmax (RPM)10800
Weight(lbs)0.1
Code101855
PackageQTY1
UOMEA
C (kN)2.72
C0 (kN)1.33
Ra (mm)1
Da (mm)41.4
damin (mm)22.6
kr30
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
