Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6302-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6302-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$74.44
This product has a minimum quantity of 5

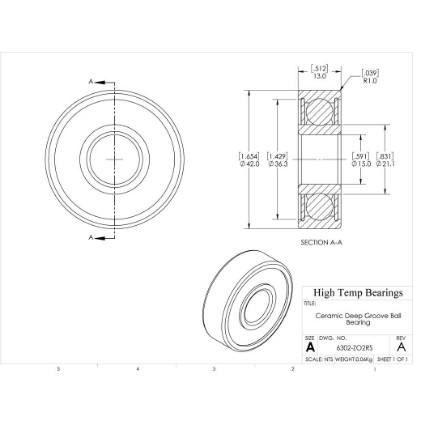

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)15
D (mm)42
B (mm)13
d1 (mm)21.1
D2 (mm)36.3
C (lb)769
C0 (lb)368
Nmax (RPM)12000
Weight(lbs)0.14
Code101847
PackageQTY1
UOMEA
C (kN)3.42
C0 (kN)1.635
Ra (mm)1
Da (mm)36.4
damin (mm)20.6
kr30
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
