Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6302-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6302-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$125.77
This product has a minimum quantity of 2
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

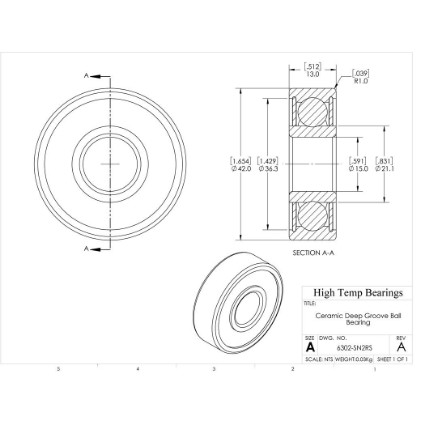

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)15
D (mm)42
B (mm)13
d1 (mm)21.1
D2 (mm)36.3
C (lb)641
C0 (lb)306
Nmax (RPM)14000
Weight(lbs)0.07
Code101845
PackageQTY1
UOMEA
C (kN)2.85
C0 (kN)1.363
Ra (mm)1
Da (mm)36.4
damin (mm)20.6
kr30
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
