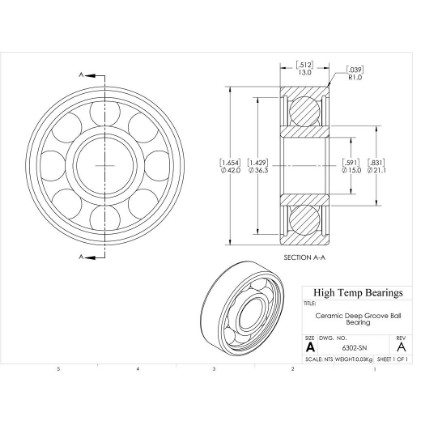

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6302-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6302-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$125.77
This product has a minimum quantity of 2
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)15
D (mm)42
B (mm)13
d1 (mm)21.1
D2 (mm)36.3
C (lb)641
C0 (lb)306
Nmax (RPM)14000
Weight(lbs)0.07
Code101844
PackageQTY1
UOMEA
C (kN)2.85
C0 (kN)1.363
Ra (mm)1
Da (mm)36.4
damin (mm)20.6
kr30
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
