1200°C Silicon Carbide Deep Groove Ball Bearing: 6302-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6302-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$120.12
This product has a minimum quantity of 5

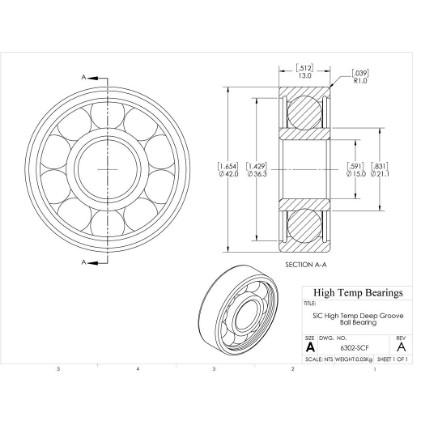

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)15
D (mm)42
B (mm)13
d1 (mm)21.1
D2 (mm)36.3
C (lb)513
C0 (lb)245
Nmax (RPM)8400
Weight(lbs)0.07
Code101843
PackageQTY1
UOMEA
SeriesSiC
C (kN)2.28
C0 (kN)1.09
Ra (mm)1
Da (mm)36.4
damin (mm)20.6
kr30
ka0.5
fo12
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
