Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6302-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6302-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$136.03
This product has a minimum quantity of 5

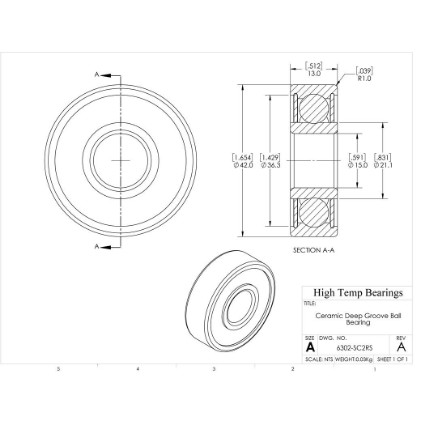

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)15
D (mm)42
B (mm)13
d1 (mm)21.1
D2 (mm)36.3
C (lb)513
C0 (lb)245
Nmax (RPM)12000
Weight(lbs)0.07
Code101842
PackageQTY1
UOMEA
C (kN)2.28
C0 (kN)1.09
Ra (mm)1
Da (mm)36.4
damin (mm)20.6
kr30
ka0.5
fo12
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
