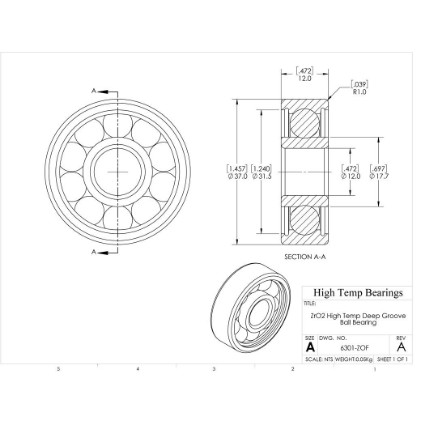

400°C Zirconium Oxide Deep Groove Ball Bearing: 6301-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6301-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$66.74
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)12
D (mm)37
B (mm)12
d1 (mm)17.7
D2 (mm)31.5
C (lb)654
C0 (lb)283
Nmax (RPM)10500
Weight(lbs)0.1
Code101835
PackageQTY1
UOMEA
SeriesZrO2
C (kN)2.91
C0 (kN)1.26
Ra (mm)1
Da (mm)31.4
damin (mm)17.6
kr30
ka0.25
fo11
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
